ZD60 Industrial Steam Turbine

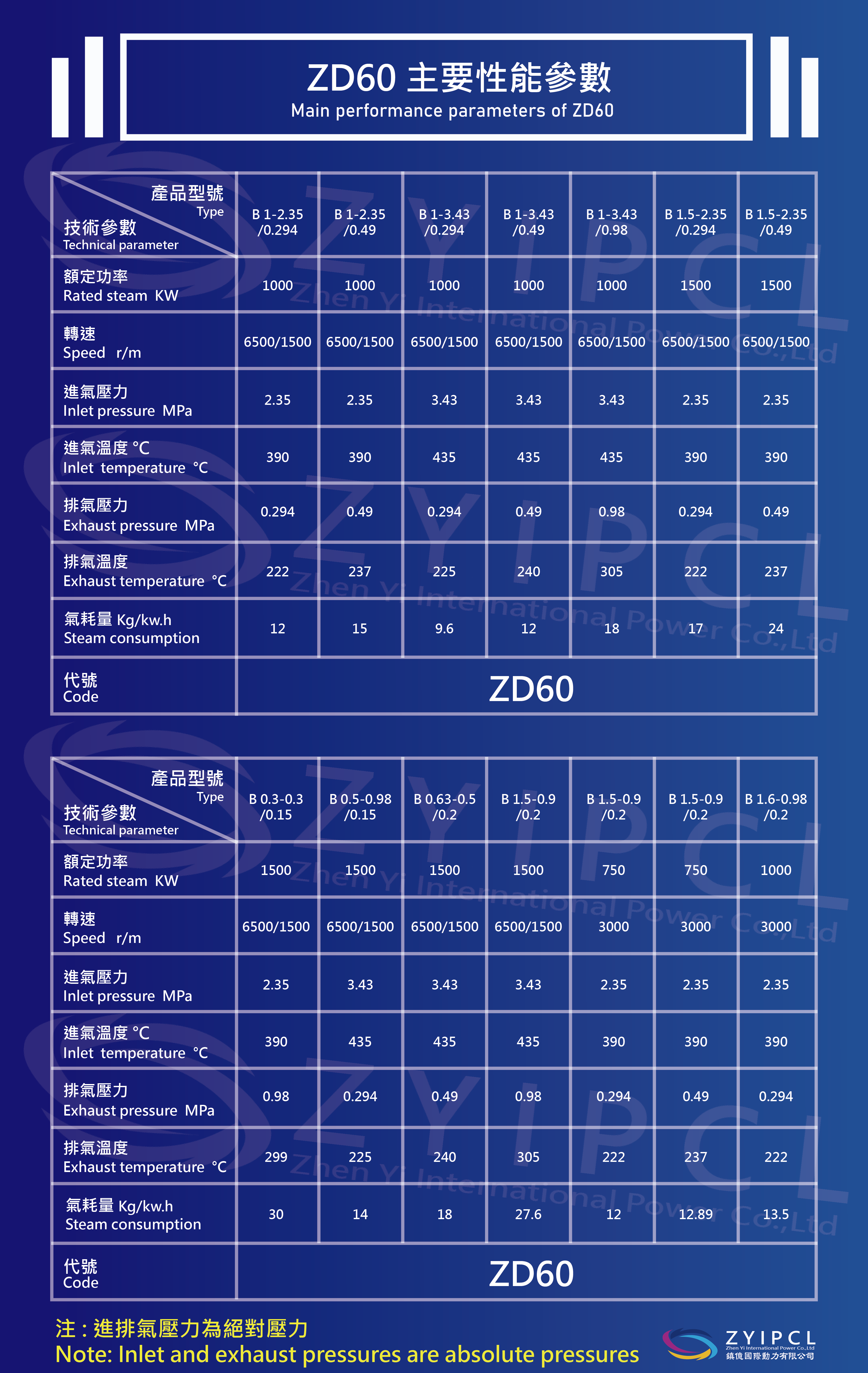

Specification Description
| Type | B 1-2.35/0.294 | B 1-2.35/0.49 | B 1-3.43/0.294 |
| Rated Power (kw) | 1000 | 1000 | 1000 |
| Speed (r/m) | 6500/1500 | 6500/1500 | 6500/1500 |
| Inlet pressure (MPa) | 2.35 | 2.35 | 3.43 |
| Inlet temperature °C | 390 | 390 | 435 |
| Exhaust pressure (MPa) | 0.294 | 0.49 | 0.294 |
