工業汽輪機
Z88 Industrial Steam Turbine

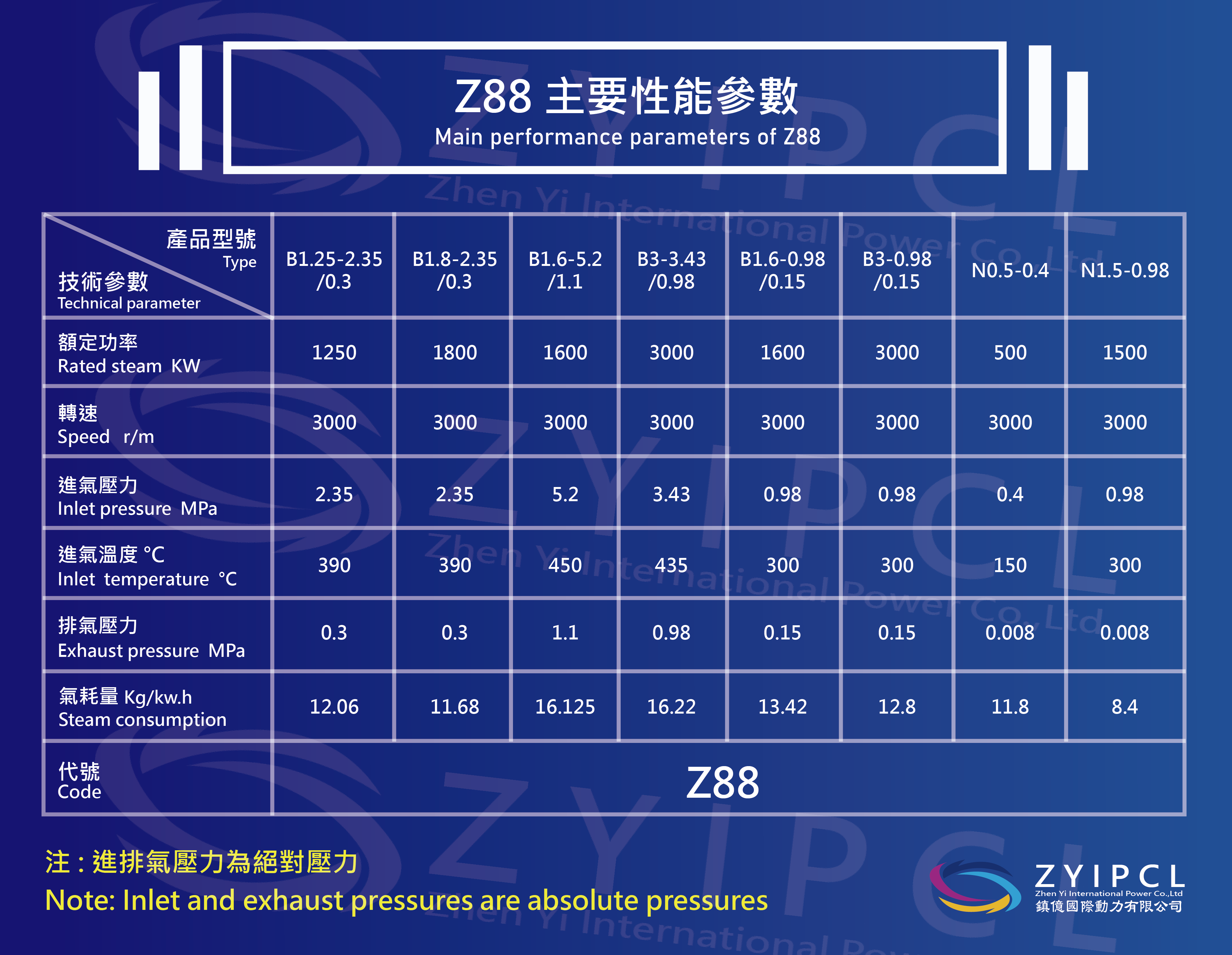

Specification Description
| Type | B1.25-2.35/0.3 | B1.8-2.35/0.3 | B1.6-5.2/1.1 |
| Rated steam (kw) | 1250 | 1800 | 1600 |
| Speed (r/m) | 3000 | 3000 | 3000 |
| Inlet pressure (MPa) | 2.35 | 2.35 | 5.2 |
| Inlet temperature °C | 390 | 390 | 450 |
| Exhaust pressure (MPa) | 0.3 | 0.3 | 1.1 |
