工業汽輪機

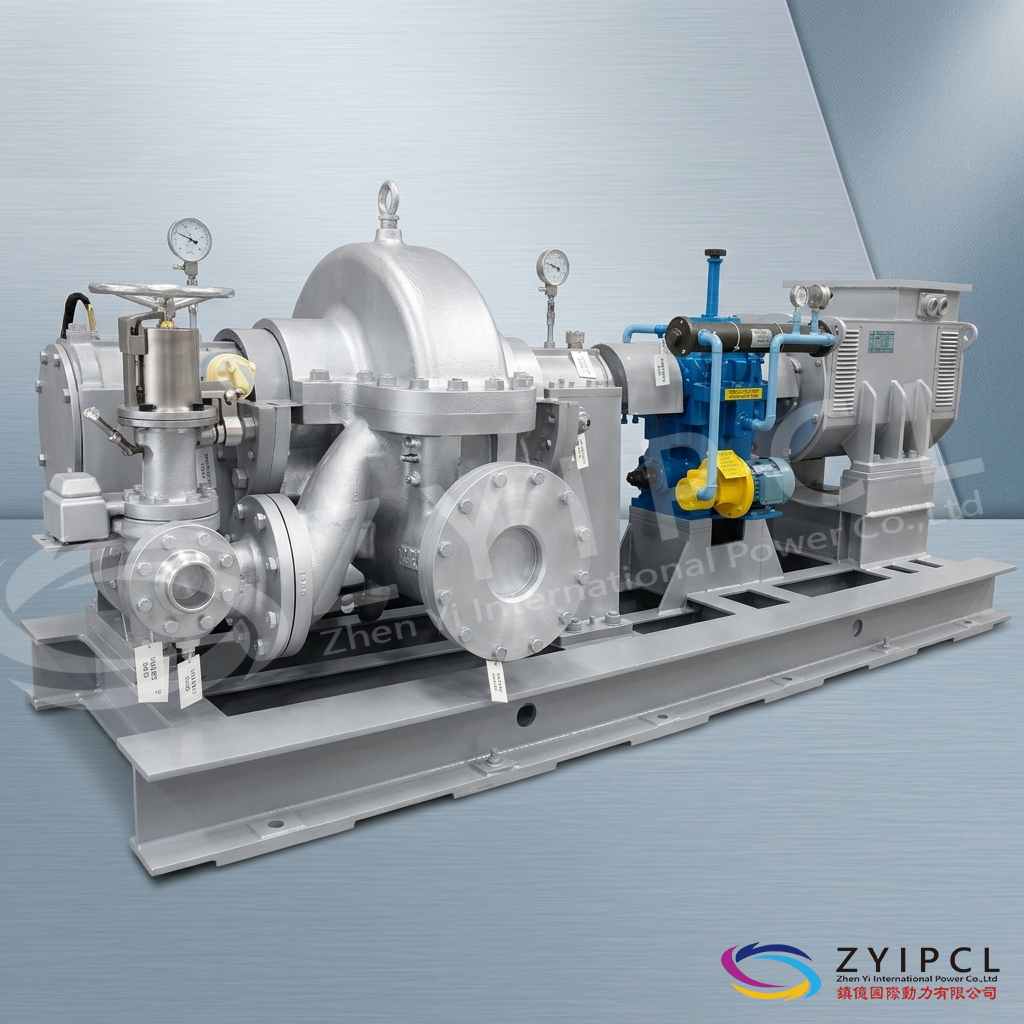

Z60 Industrial Steam Turbine

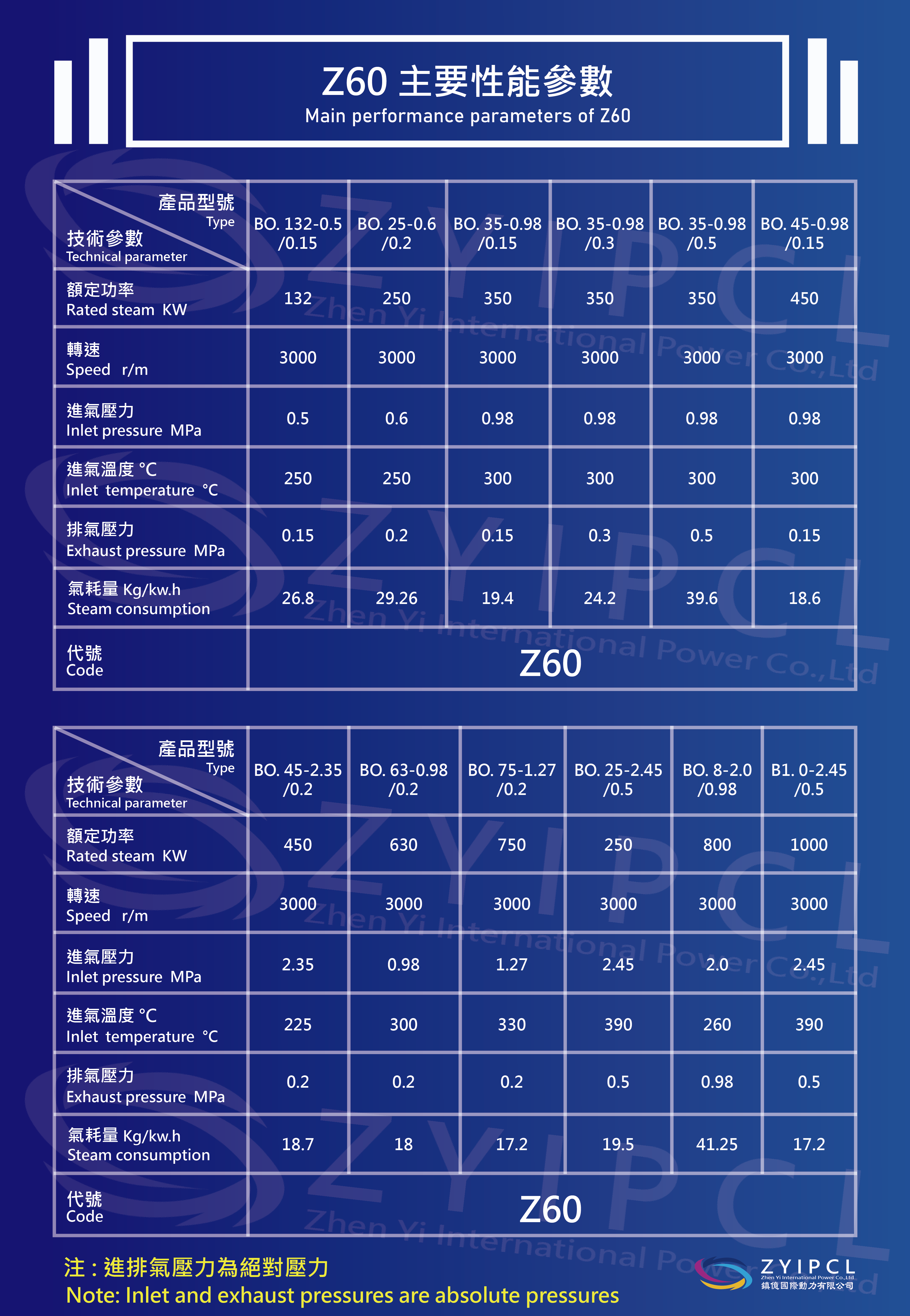

Specification Description
| Type | BO. 132-0.5/0.15 | BO. 25-0.6/0.2 | BO. 35-0.98/0.15 |
| Rated Power (kw) | 132 | 250 | 350 |
| Speed r/m | 3000 | 3000 | 3000 |
| Inlet pressure (MPa) | 0.5 | 0.6 | 0.98 |
| Inlet temperature ℃ | 250 | 250 | 300 |
| Exhaust pressure (MPa) | 0.15 | 0.2 | 0.15 |
